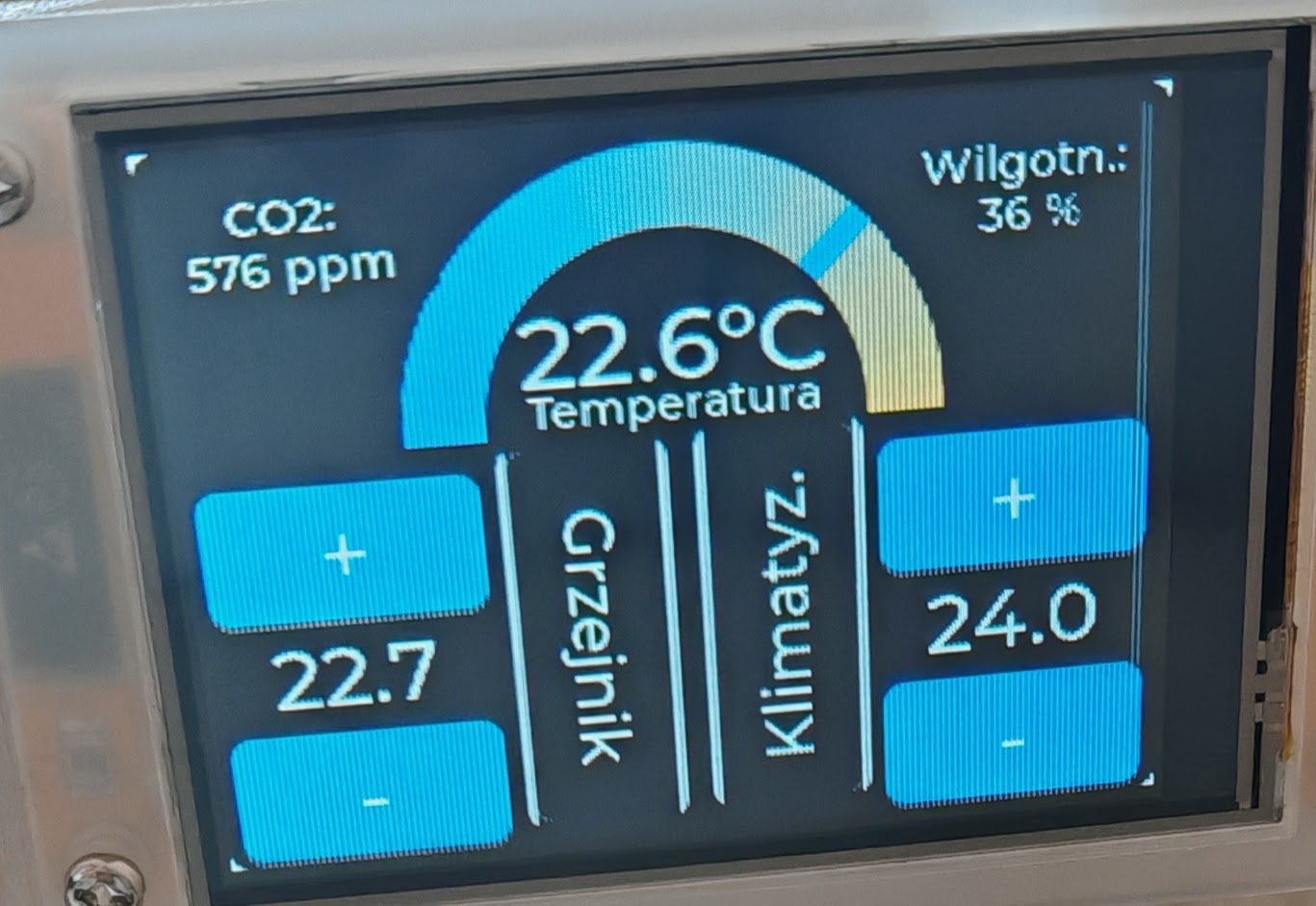

Miałem dziś trochę czasu i pobawiłem się dalej tym wyświetlaczem. Z pomocą Internetu i AI napisałem konfigurację i jestem ogólnie zadowolony:

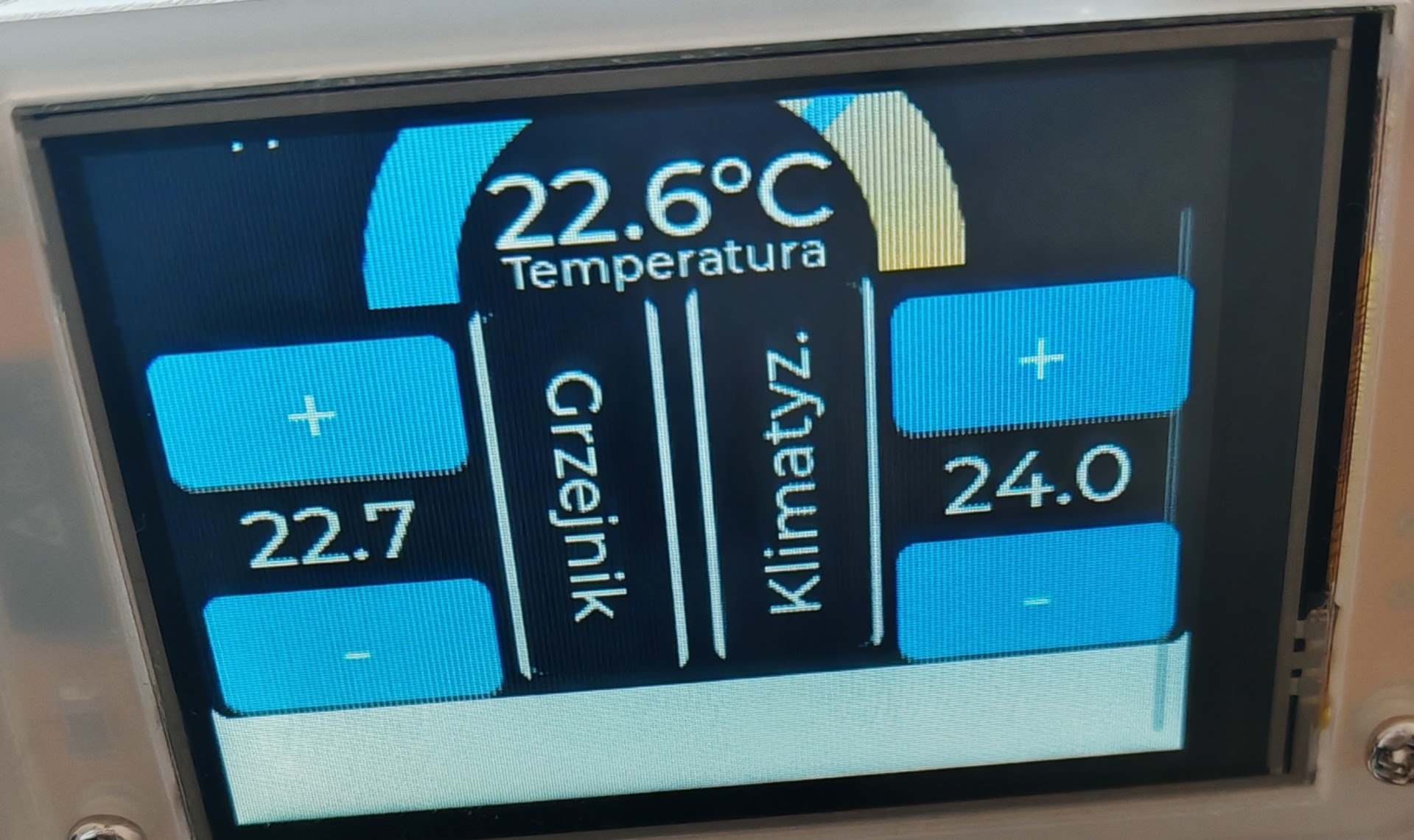

Jednakże jak widać na załaczonym obrazku z prawej strony pojawia mi się pasek przewijania tak jakby coś nie mieściło się w wyznaczonym obszarze. Przez to gdy klikam na przyciski ekran potrafi się przesunąć:
Próbowałem to diagnozować, przesuwałem przyciski +/- wyżej napisy Co2/Wilgotność i skalę z temperaturą niżej ale nic to nie dało.
Może macie jakieś pomysły?
esphome:
name: lcd1
friendly_name: lcd1
on_boot:
priority: 600
then:
- lambda: |-
lv_obj_t *blank_screen = lv_obj_create(NULL);
lv_scr_load(blank_screen); // Ładuje pusty ekran
esp32:
board: esp32dev
framework:
type: arduino
logger:
api:
encryption:
key: "XXXXXXXXXXXXXXXXXXXX"
ota:
- platform: esphome
password: "XXXXXXXXXXXXXXXX"
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
ap:
ssid: "Lcd1 Fallback Hotspot"
password: "XXXXXXX"
captive_portal:
globals:
- id: brightness
type: float
restore_value: yes
initial_value: "1.0"
- id: temperatura
type: float
restore_value: no
- id: temperatura_k
type: float
restore_value: no
spi:
- id: tft
clk_pin: GPIO14
mosi_pin: GPIO13
miso_pin: GPIO12
- id: touch
clk_pin: GPIO25
mosi_pin: GPIO32
miso_pin: GPIO39
output:
- platform: ledc
pin: GPIO21
id: backlight_pwm
- platform: ledc
pin: GPIO4
id: led_red
inverted: true
- platform: ledc
pin: GPIO16
id: led_green
inverted: true
- platform: ledc
pin: GPIO17
id: led_blue
inverted: true
lvgl:
buffer_size: 25%
pages:
- id: meter_page
widgets:
- obj:
height: 240
width: 320
align: CENTER
y: 0
x: 0
bg_color: 0x000000
border_width: 0
pad_all: 0
widgets:
- meter:
id: my_meter # Dodany identyfikator metra
x: 0
y: -25
height: 200
width: 200
border_width: 0
align: CENTER
bg_opa: TRANSP
scales:
- range_from: -15
range_to: 35
angle_range: 180
ticks:
count: 70
width: 1
length: 31
indicators:
- tick_style:
start_value: -15
end_value: 35
color_start: 0x3399ff
color_end: 0xffcc66
- range_from: -150
range_to: 350
angle_range: 180
ticks:
count: 0
indicators:
- line:
id: temperature_needle
width: 8
r_mod: 0
value: 10
color: 0x3399ff
- obj: # Przykrywamy środek wskaźnika
height: 123
width: 123
radius: 73
y: -25
align: CENTER
border_width: 0
pad_all: 0
bg_color: 0x000000
- label:
id: temperature_text
text: "--.-°C"
align: CENTER
y: -50
text_color: 0xffffff
bg_color: 0x000000
text_font: montserrat_32
- label:
text: "Temperatura"
align: CENTER
y: -30
text_color: 0xffffff
bg_color: 0x000000
- obj:
align: BOTTOM_LEFT
width: 100
height: 140
border_width: 0
pad_all: 0
text_color: 0xffffff
bg_color: 0x000000
text_font: montserrat_32
widgets:
- button:
width: 90
height: 45
id: temp_down
align: CENTER
text_align: CENTER
y: +45
bg_color: 0x3399ff
on_click:
- lambda: |-
id(temperatura) -= 0.2;
{
char buf[10];
snprintf(buf, sizeof(buf), "%.1f", id(temperatura));
lv_label_set_text(id(temperatura_wysw), buf);
}
- homeassistant.action:
action: climate.set_temperature
data:
temperature: !lambda "return id(temperatura);"
entity_id: climate.salonik
widgets:
- label:
align: CENTER
text_align: CENTER
text: "-"
- label:
id: temperatura_wysw
align: CENTER
text_align: CENTER
width: 90
height: 45
y: +10
text_font: montserrat_28
text_color: 0xffffff
on_value:
then:
- homeassistant.action:
action: climate.set_temperature
data:
temperature: !lambda "return id(temperatura);"
entity_id: climate.salonik
- button:
id: temp_up
width: 90
height: 45
align: CENTER
text_align: CENTER
bg_color: 0x3399ff
y: -40
on_click:
- lambda: |-
id(temperatura) += 0.2;
{
char buf[10];
snprintf(buf, sizeof(buf), "%.1f", id(temperatura));
lv_label_set_text(id(temperatura_wysw), buf);
}
- homeassistant.action:
action: climate.set_temperature
data:
temperature: !lambda "return id(temperatura);"
entity_id: climate.salonik
widgets:
- label:
align: CENTER
text_align: CENTER
text: "+"
- obj:
border_width: 3
border_side:
- bottom
- top
width: 135
height: 55
pad_all: 0
text_color: 0xffffff
bg_color: 0x000000
text_font: montserrat_22
transform_angle: 90
y: 100
x: 155
widgets:
- button:
id: temp_downgrzejnik
align: CENTER
text_align: CENTER
width: 130
height: 50
bg_color: 0x000000
- label:
align: CENTER
text_align: CENTER
text: "Grzejnik"
- obj:
border_width: 0
width: 90
height: 40
pad_all: 0
text_color: 0xffffff
bg_color: 0x000000
text_font: montserrat_14
y: 10
x: 0
widgets:
- label:
id: co2_label
align: CENTER
text_align: CENTER
text: "CO2: \n-- ppm"
- obj:
border_width: 0
width: 90
height: 40
pad_all: 0
text_color: 0xffffff
bg_color: 0x000000
text_font: montserrat_14
y: 10
x: 230
widgets:
- label:
id: hum_label
align: CENTER
text_align: CENTER
text: "Wilgotn. \n-- %%"
- obj:
border_width: 3
border_side:
- bottom
- top
width: 135
height: 55
pad_all: 0
text_color: 0xffffff
bg_color: 0x000000
text_font: montserrat_22
transform_angle: 270
y: 232
x: 165
widgets:
- button:
id: temp_klima
align: CENTER
text_align: CENTER
width: 130
height: 50
bg_color: 0x000000
on_click:
then:
- homeassistant.action:
action: climate.toggle
data:
entity_id: climate.153931628223294_climate
- label:
align: CENTER
text_align: CENTER
text: "Klimatyz."
- obj:
align: BOTTOM_LEFT
x: +220
width: 100
height: 140
border_width: 0
pad_all: 0
text_color: 0xffffff
bg_color: 0x000000
text_font: montserrat_32
widgets:
- button:
width: 90
height: 45
id: temp_down_k
align: CENTER
text_align: CENTER
y: +45
bg_color: 0x3399ff
on_click:
- lambda: |-
id(temperatura_k) -= 0.2;
{
char buf[10];
snprintf(buf, sizeof(buf), "%.1f", id(temperatura_k));
lv_label_set_text(id(temperatura_wysw_k), buf);
}
- homeassistant.action:
action: climate.set_temperature
data:
temperature: !lambda "return id(temperatura_k);"
entity_id: climate.153931628223294_climate
widgets:
- label:
align: CENTER
text_align: CENTER
text: "-"
- label:
id: temperatura_wysw_k
align: CENTER
text_align: CENTER
width: 90
height: 45
y: +10
text_font: montserrat_28
text_color: 0xffffff
on_value:
then:
- homeassistant.action:
action: climate.set_temperature
data:
temperature: !lambda "return id(temperatura_k);"
entity_id: climate.153931628223294_climate
- button:
id: temp_up_k
width: 90
height: 45
align: CENTER
text_align: CENTER
bg_color: 0x3399ff
y: -40
on_click:
- lambda: |-
id(temperatura_k) += 0.2;
{
char buf[10];
snprintf(buf, sizeof(buf), "%.1f", id(temperatura_k));
lv_label_set_text(id(temperatura_wysw_k), buf);
}
- homeassistant.action:
action: climate.set_temperature
data:
temperature: !lambda "return id(temperatura_k);"
entity_id: climate.153931628223294_climate
widgets:
- label:
align: CENTER
text_align: CENTER
text: "+"
display:
- platform: ili9xxx
model: ILI9341
spi_id: tft
invert_colors: false
cs_pin: 15
dc_pin: 2
update_interval: 1s
id: my_display
auto_clear_enabled: false
rotation: 90
light:
- platform: monochromatic
output: backlight_pwm
name: "Podświetlenie LCD"
id: backlight
restore_mode: ALWAYS_ON
- platform: rgb
name: RGB
id: led
red: led_red
green: led_green
blue: led_blue
restore_mode: ALWAYS_OFF
switch:
- platform: restart
name: "Restart"
- platform: shutdown
name: "Shutdown"
- platform: safe_mode
name: "Restart (Safe Mode)"
touchscreen:
platform: xpt2046
spi_id: touch
cs_pin: GPIO33
interrupt_pin: GPIO36
update_interval: 50ms
threshold: 400
calibration:
x_min: 280
x_max: 3860
y_min: 340
y_max: 3860
transform:
swap_xy: true
sensor:
- platform: adc
pin: GPIO34
name: "board_ldr"
update_interval: 1500ms
- platform: wifi_signal
name: "WiFi Signal dB"
id: wifi_signal_db
update_interval: 60s
entity_category: "diagnostic"
- platform: copy
source_id: wifi_signal_db
name: "WiFi Signal Percent"
filters:
- lambda: return min(max(2 * (x + 100.0), 0.0), 100.0);
unit_of_measurement: "Signal %"
entity_category: "diagnostic"
- platform: homeassistant
id: temperatura_aktualna
entity_id: sensor.salon_temp_wilg_temperatura
on_value:
- lambda: |-
lv_meter_set_indicator_value(id(my_meter), id(temperature_needle), x * 10);
- lvgl.label.update:
id: temperature_text
text:
format: "%.1f°C"
args: [ x ]
- platform: homeassistant
id: room_thermostat
entity_id: climate.salonik
attribute: temperature
on_value:
- lambda: |-
id(temperatura) = x;
{
char buf[10];
snprintf(buf, sizeof(buf), "%.1f", x);
lv_label_set_text(id(temperatura_wysw), buf);
}
- platform: homeassistant
id: co2_salon
entity_id: sensor.czujnik_c02_salon_2_poziom_co2
on_value:
- lambda: |-
char buf[20];
snprintf(buf, sizeof(buf), "CO2: \n%d ppm", (int)x);
lv_label_set_text(id(co2_label), buf);
- platform: homeassistant
id: hum_salon
entity_id: sensor.salon_temp_wilg_wilgotnosc
on_value:
- lambda: |-
char buf[20];
snprintf(buf, sizeof(buf), "Wilgotn.: \n%d %%", (int)x);
lv_label_set_text(id(hum_label), buf);
- platform: homeassistant
id: room_klima
entity_id: climate.153931628223294_climate
attribute: temperature
on_value:
- lambda: |-
id(temperatura_k) = x;
{
char buf[10];
snprintf(buf, sizeof(buf), "%.1f", x);
lv_label_set_text(id(temperatura_wysw_k), buf);
}
i2s_audio:
i2s_lrclk_pin: GPIO26
media_player:
- platform: i2s_audio
name: ESPHome I2S Media Player
dac_type: internal
mode: stereo
